Installation Contactors

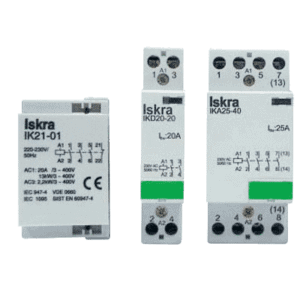

Installation Contactors IK-IKA-IKD
General Features
- Version 11 – 1NC 1NO
- Version 20 – 2NC
- Versione 02 – 2NO

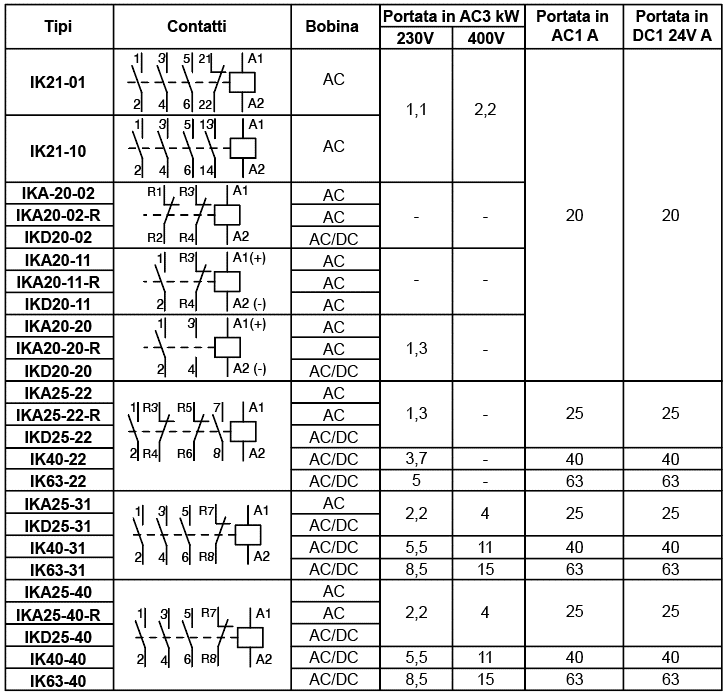

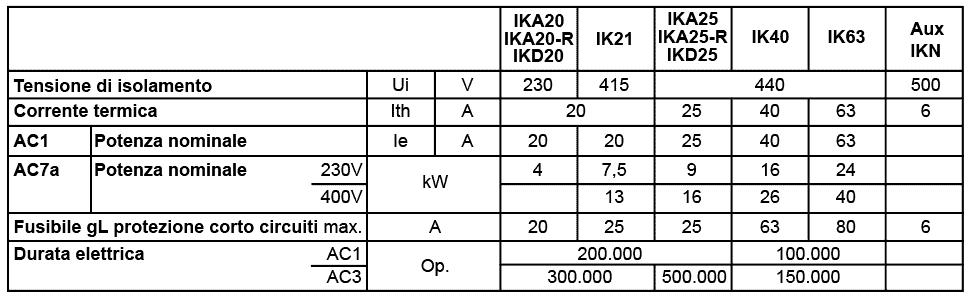

Technical Data

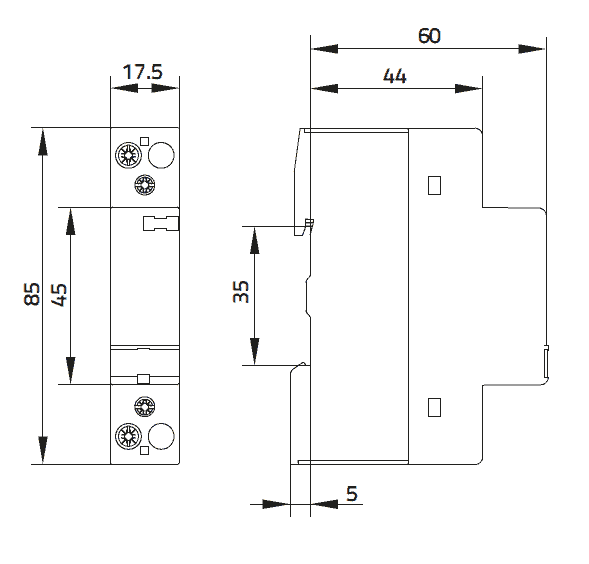

- Mounting on 35 mm rail DIN35
- Mounting on modular panel EN60715

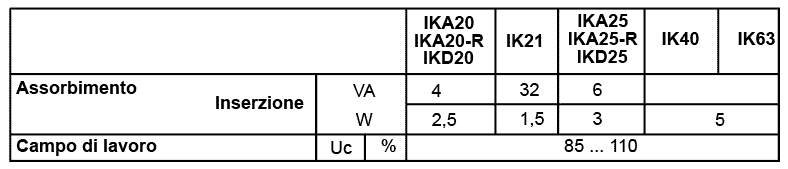

- Coil in AC/DC (excluding IK21)
- Degree of protection IP20
- Possibility of sealing
- Mechanical endurance 10.000.000.000 op.
Standards
- IEC/EN 61095
- IEC/EN 60947-4-1
- IEC/EN 60947-5-1
