Feed-through terminals

Feed-through terminals in self-extinguishing polyamide 6.6 from 2.5 mmq to 70 mmq

General Features

Double level line-up terminal 6.6 polyamide selfexstinguishable
Color RAL 1014
Mounting on rail DIN 32/35
Suitable for use in temperature range from -40° to +100° C
They are protected against atmospheric corroding agents

Standards

Approvals

2,5 mmq 4 mmq 6 sq. Mm 10 sq. Mm 16 sq. Mm 35 sq. Mm 70 sq. Mm

2,5 mmq

Nominal Current A 24
Nominal Voltage V 660
Thickness 5mm
KP4PA – VP4PA separators
Pack of 100 pcs

Code	Color
VS 2.5 PA	Grey
VS 2.5 PAN	Blue
VS 2.5 PA +	Red
VS 2.5 PAO	Orange

41-vs4pa

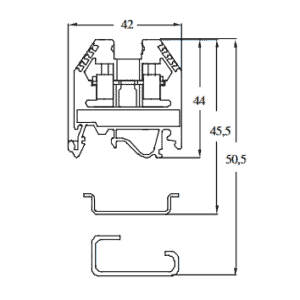

41-vs4pa-mis

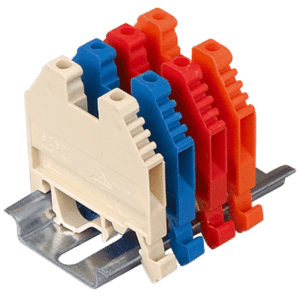

4 mmq

Nominal Current A 32
Nominal Voltage V 660
Thickness 6mm
KP4PA – VP4PA separators
Pack of 100 pcs

Code	Color
VS 4 PA	Grey
VS 4 PAN	Blue
VS 4 PA +	Red
VS 4 PAO	Orange
VS 4 EP	Yellow green

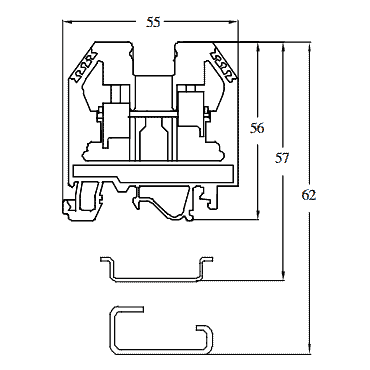

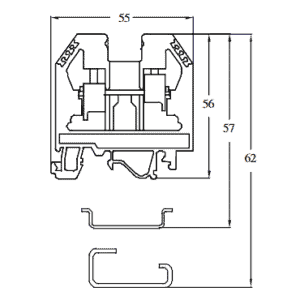

6 sq. Mm

Nominal Current A 41
Nominal Voltage V 660
Thickness 8mm
KP16PA – VP16PA separators
Pack 50 pcs

Code	Color
VS 6 PA	Grey
VS 6 PAN	Blue
VS 6 PA +	Red
VS 6 PAO	Orange
VS 6 XP	Yellow green

10 sq. Mm

Nominal Current A 57
Nominal Voltage V 660
Thickness 10mm
KP16PA – VP16PA separators
Pack 50 pcs

Code	Color
VS 10 PA	Grey
VS 10 PAN	Blue
VS 10 PA +	Red
VS 10 PAO	Orange

16 sq. Mm

Nominal Current A 41
Nominal Voltage V 660
Thickness 8mm
KP16PA – VP16PA separators
Pack 50 pcs

Code	Color
VS 16 PA	Grey
VS 16 PAN	Blue
VS 16 PA +	Red
VS 16 PAO	Orange
VS 16 EP	Yellow green

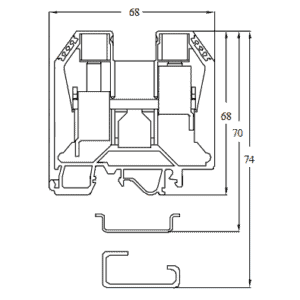

35 sq. Mm

Nominal Current A 76
Nominal Voltage V 660
Thickness 12mm
KP16PA – VP16PA separators
Pack 50 pcs

Code	Color
VS 35 PA	Grey
VS 35 PAN	Blue
VS 6 PA +	Red
VS 35 PAO	Orange
VS 35 EP	Yellow green

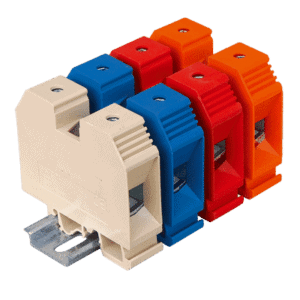

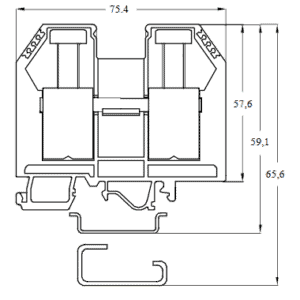

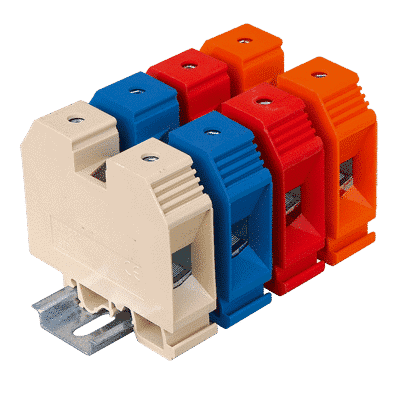

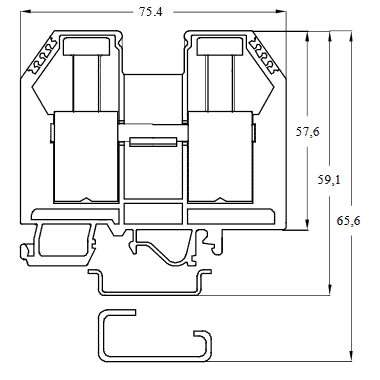

70 sq. Mm

Nominal Current A 192
Nominal Voltage V 660
Thickness 20mm
KP70PA – VP70PA separators
Pack of 20 pcs

Code	Color
VS 70 PA	Grey
VS 70 PAN	Blue
VS 70 PA +	Red
VS 70 PAO	Orange
