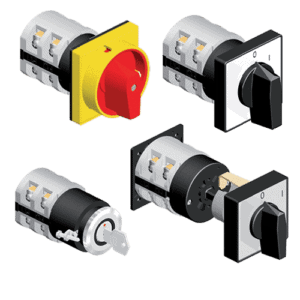

Rotary cam switches from 10 to 1200 Ampere

General Features

Rotary cam switches have been designed on modern principles taking into consideration the latest achievement in the field of switching devices through the application of high quality insulation materials and contacts made with silver alloys
Suitable for AC3/AC23 and AC1/AC21
Melopas MP185 – Color RAL 7035.

Standards

Approvals

Sizes

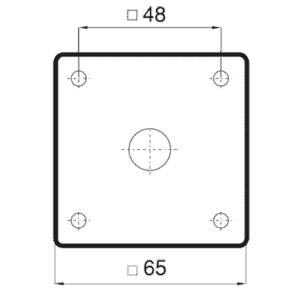

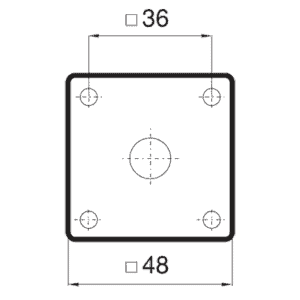

Size A0

4G10N – 4G16N

Size A1

4G10NH – 4G16NH – 4G25N – 4G63N

Size A2

4G25NH – 4G63NH -4G100N

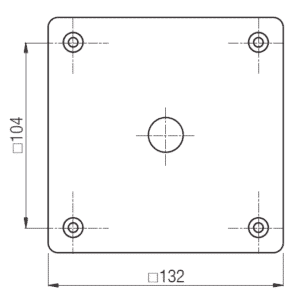

Size A3

4G200 – G315 – G630 – G1200 – G2000

Standard Schemes Request custom scheme

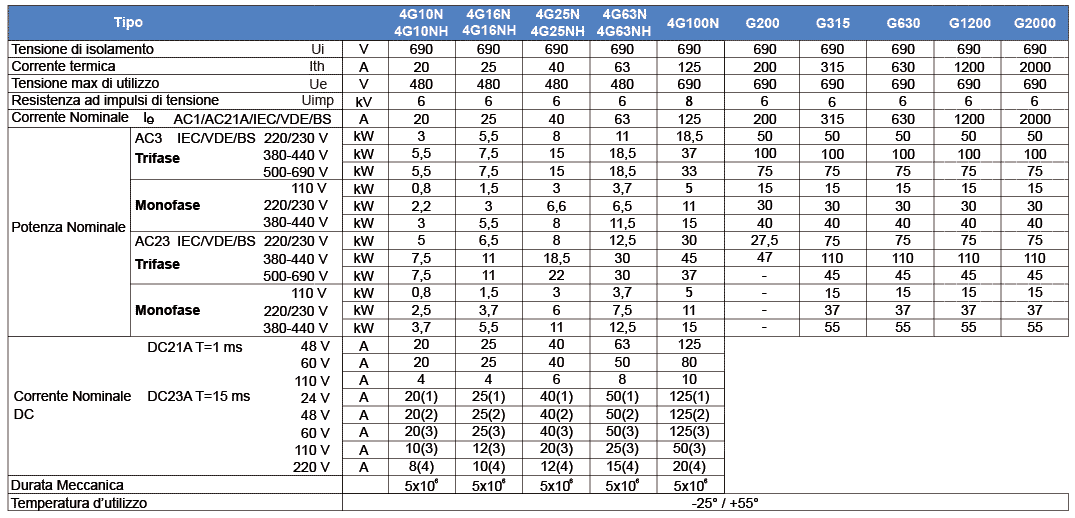

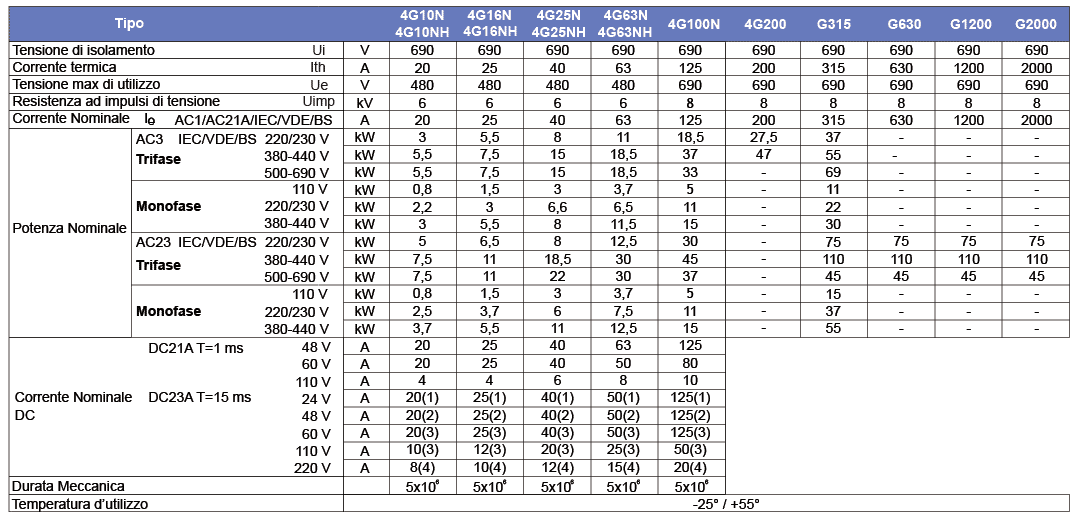

Technical Data

Mounting form

Front mounting IP40

Mounting U

80-misure-montaggio-u-2

80-misure-montaggio-u-1

80-misure-montaggio-u-4

80-dimensioni-u-02

L = number of elements

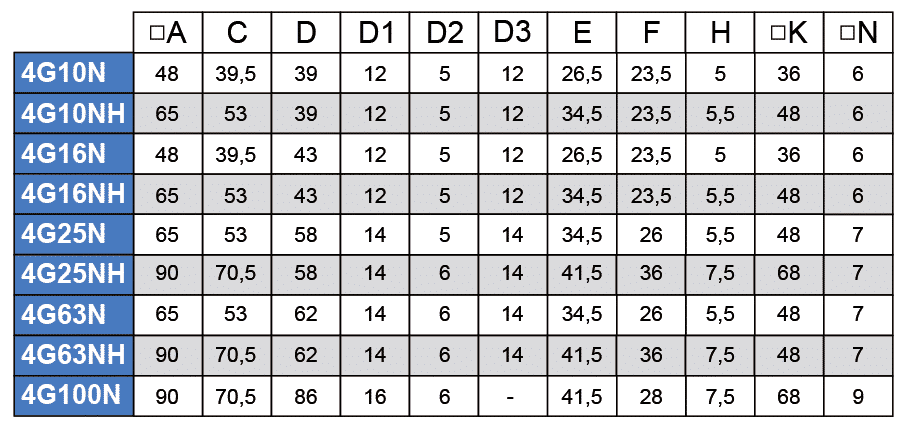

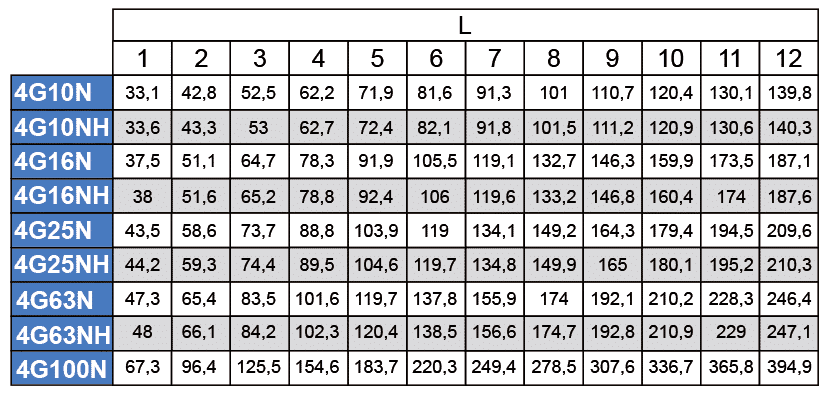

80-dimensioni-u-01

Rear mounting

Mounting O

80-misure-montaggio-o-1

80-misure-montaggio-o-2

80-misure-montaggio-o-3

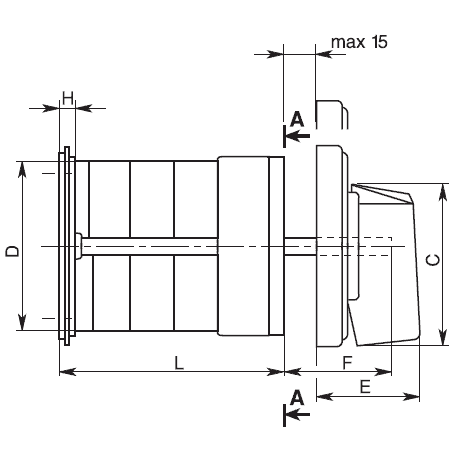

80-misure-montaggio-o-4

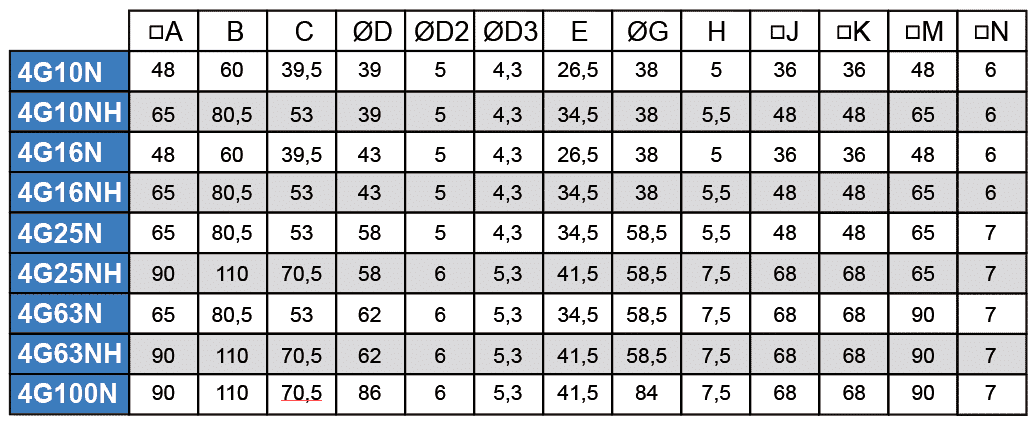

81-montaggio-o-1

Rear mounting without plate

Mounting R

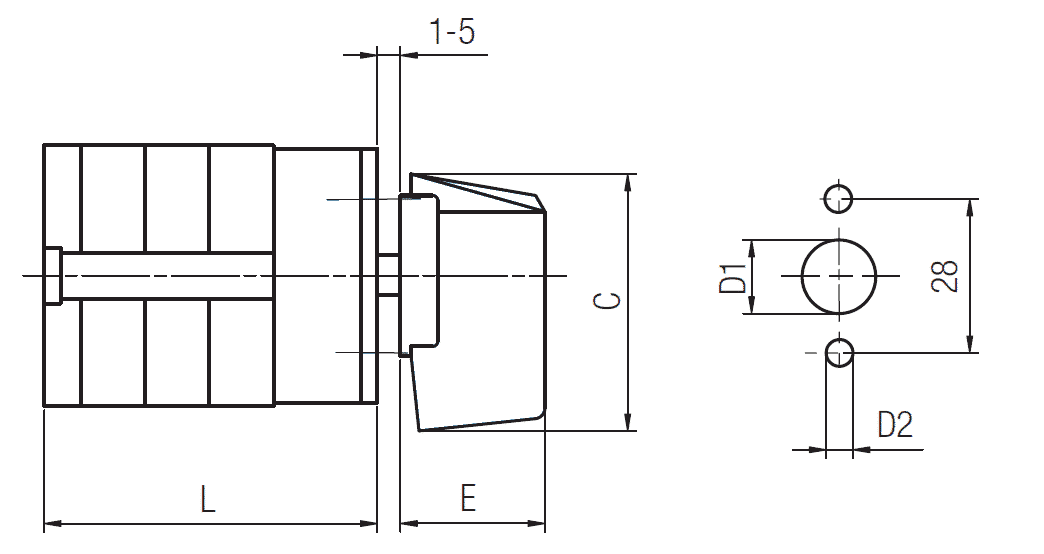

80-misure-montaggio-r

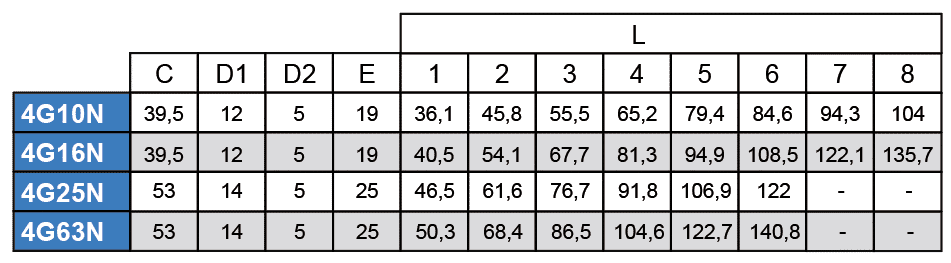

80-esec-r-misure

In plastic enclosure IP65

Mounting P

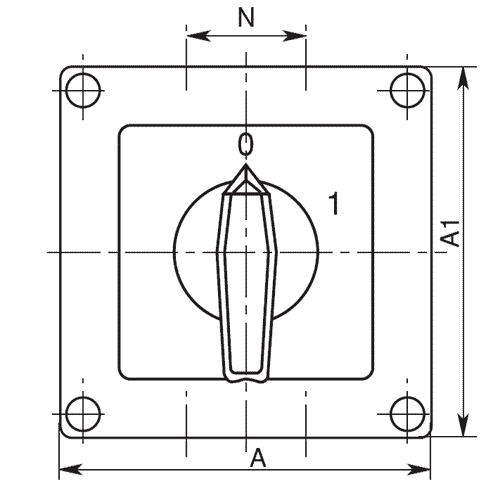

80-misure-montaggio-p-1

80-misure-montaggio-p-2

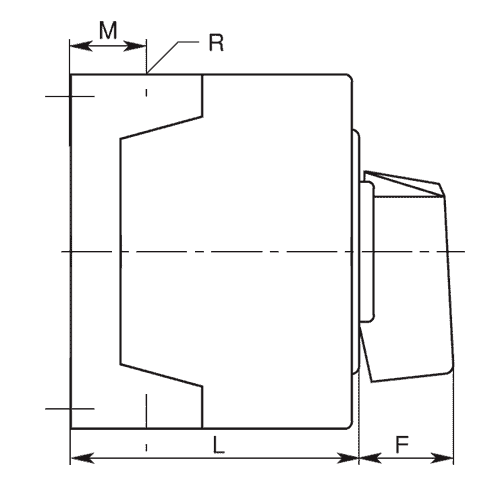

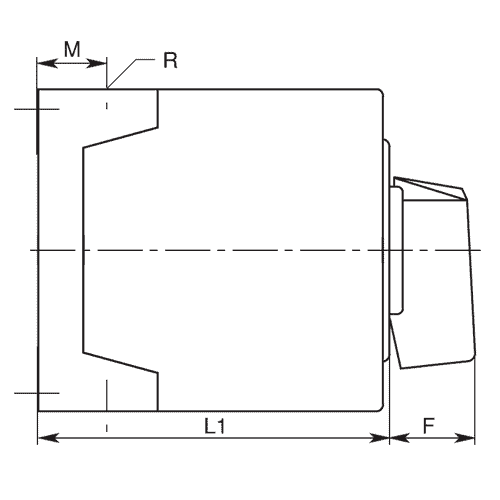

80-misure-montaggio-p-4

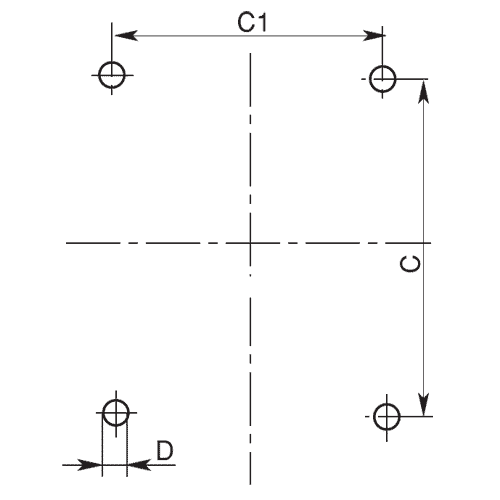

80-misure-montaggio-p-3

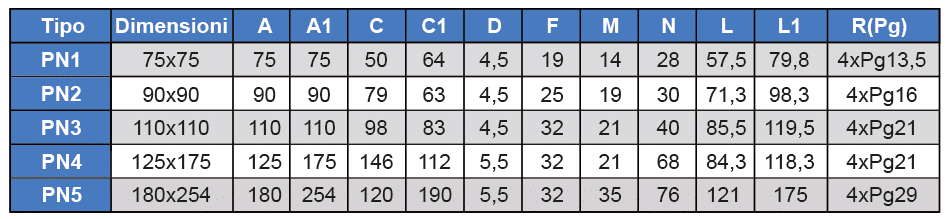

80-dimensioni-p
